产品参数
|
|
5TJ4 Parameters |
|

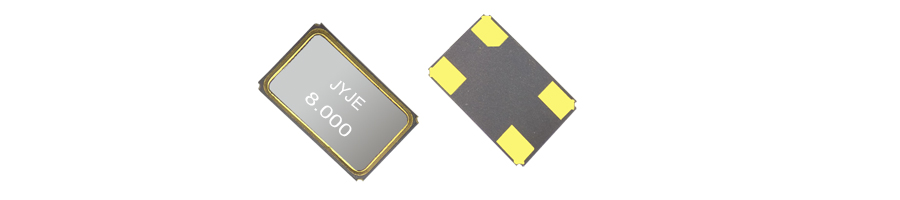

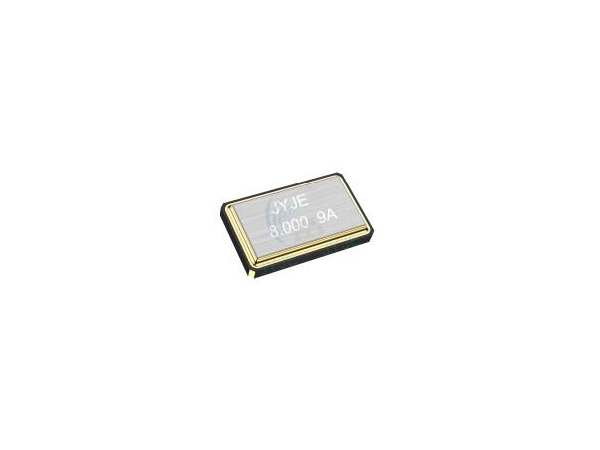

5TJ4 SMD5032 Electricial Spec |
|||
|
|
|
|
Min |
Type |
Max |
Units |
|
1 |
标称频率(Nominal Frequency) |
FL |
7.600～66.000 |
MHz |
||
|
2 |
振动模式(Oscillation Mode) |
- |
Fundamental |
- |
||
|
3 |
负载电容(Load Capacitiance) |
CL |
7～20 or specify |
pF |
||
|
4 |
常温频差(Frequency Tolerance) |
- |
±10～±20 |
ppm |
||
|
5 |
温度频差(Frequency stability) |
- |
±10～±20 |
ppm |
||
|
6 |
工作温度(Operating Temperature) |
- |
-40 |
~ |
85 |
℃ |
|
7 |
老化率(Aging) |
- |
±3 |
ppm |
||
|
8 |
激励功率(Drive Level) |
DL |
- |
- |
100 |
μW |
|
9 |
谐振电阻(Effective Resistance Rr) |
Rr |
- |
- |
80 |
Ω |
|
10 |
静态电容(Shunt Capacitance CO) |
CO |
- |
- |
5 |
pF |
|
11 |
绝缘电阻(Insulation Resistance) |
- |
500 |
- |
- |
MΩ |
|
12 |
储存温度(Storage Temperature Range) |
- |
-40 |
～ |
85 |
℃ |
晶振应用领域：新能源汽车电子、智能机器人、无人机、医疗电子、2.4G无线通讯、光网络通讯、蓝牙、移动终端、物联网、工业控制、及安防行业都取得一定的市场占有率。
